Meta Description: Explore the critical role of TPE extruders in modern manufacturing. This in-depth guide covers TPE extrusion principles, advantages over other polymers, key equipment considerations, and how to select the right extruder for efficiency and product quality.
In the dynamic landscape of polymer manufacturing, a class of materials has steadily risen to prominence by bridging a critical gap between rigid plastics and flexible rubbers. Thermoplastic Elastomers (TPEs) offer a unique combination of elastic properties and the processing ease of thermoplastics. Their applications are vast and growing, spanning from automotive seals and soft-grip tools to medical devices and consumer products.
However, the remarkable properties of TPEs can only be fully realized through precise and efficient processing. At the heart of this transformation lies a single, indispensable piece of equipment: the TPE extruder. This machine is not merely a melting vessel; it is a sophisticated engineering system responsible for compounding, plasticizing, and shaping TPEs into final products with consistent quality. For businesses aiming to leverage the benefits of TPEs—sustainability, design flexibility, and cost-effectiveness—understanding the TPE extruder is not an option; it is a strategic necessity.
This guide delves into the intricacies of TPE extrusion, providing a fact-based analysis of the technology, its economic and operational advantages, and the critical factors to consider when investing in extrusion systems for TPE applications.
What Are TPEs?
Thermoplastic Elastomers are a family of copolymers or a physical mix of polymers (usually a plastic and a rubber) that exhibit both thermoplastic and elastomeric properties. Unlike thermoset rubbers (like EPDM or Silicone) that undergo an irreversible vulcanization process, TPEs melt when heated and solidify upon cooling. This characteristic allows them to be reprocessed and recycled, a significant environmental and economic advantage.
According to a report by Grand View Research, the global TPE market size was valued at USD 21.46 billion in 2022 and is expected to expand at a compound annual growth rate (CAGR) of 5.3% from 2023 to 2030. This growth is largely driven by the replacement of traditional materials in automotive, construction, and medical sectors.
Key Challenges in TPE Processing:
While TPEs are known for their processability, they present unique challenges that a standard extruder might not handle effectively:
1.Sensitivity to Shear and Temperature: Certain TPEs, especially some TPVs (Thermoplastic Vulcanizates) and TPUs (Thermoplastic Polyurethanes), can be sensitive to excessive shear heat. Overheating can lead to degradation, affecting the material's physical properties and surface finish.
2.Feedability: Some TPE compounds are soft and bulky, making them difficult to feed consistently into the extruder throat. This can lead to surging and output instability.
3.Mixing Efficiency: Achieving a homogeneous dispersion of additives, colorants, or regrind material requires efficient melting and mixing capabilities.
4.Volatile Removal: TPEs may contain moisture or low-molecular-weight components that need to be vented to prevent voids or defects in the final product.
A TPE extruder is specifically designed or configured to address these challenges, ensuring optimal product quality and manufacturing efficiency.
A TPE extruder is a complex system where each component plays a vital role. The core of the system is the extruder itself, typically a single-screw or twin-screw design.
A. Single-Screw vs. Twin-Screw Extruders for TPEs
●Single-Screw Extruders: These are the workhorses of the extrusion industry, known for their simplicity, robustness, and cost-effectiveness. They are ideal for:
○Profile Extrusion: Producing continuous shapes like seals, gaskets, and tubing from pre-compounded TPE pellets.
○Sheet Extrusion: Creating TPE sheets for thermoforming applications.
○Basic Compounding: While less efficient than twin-screw models, certain single-screw designs with mixing sections can handle simple compounding tasks.
●Fact: Single-screw extruders dominate the market for direct extrusion of standard TPE compounds due to their lower initial investment and operational costs. Their efficiency is highly dependent on the screw design.

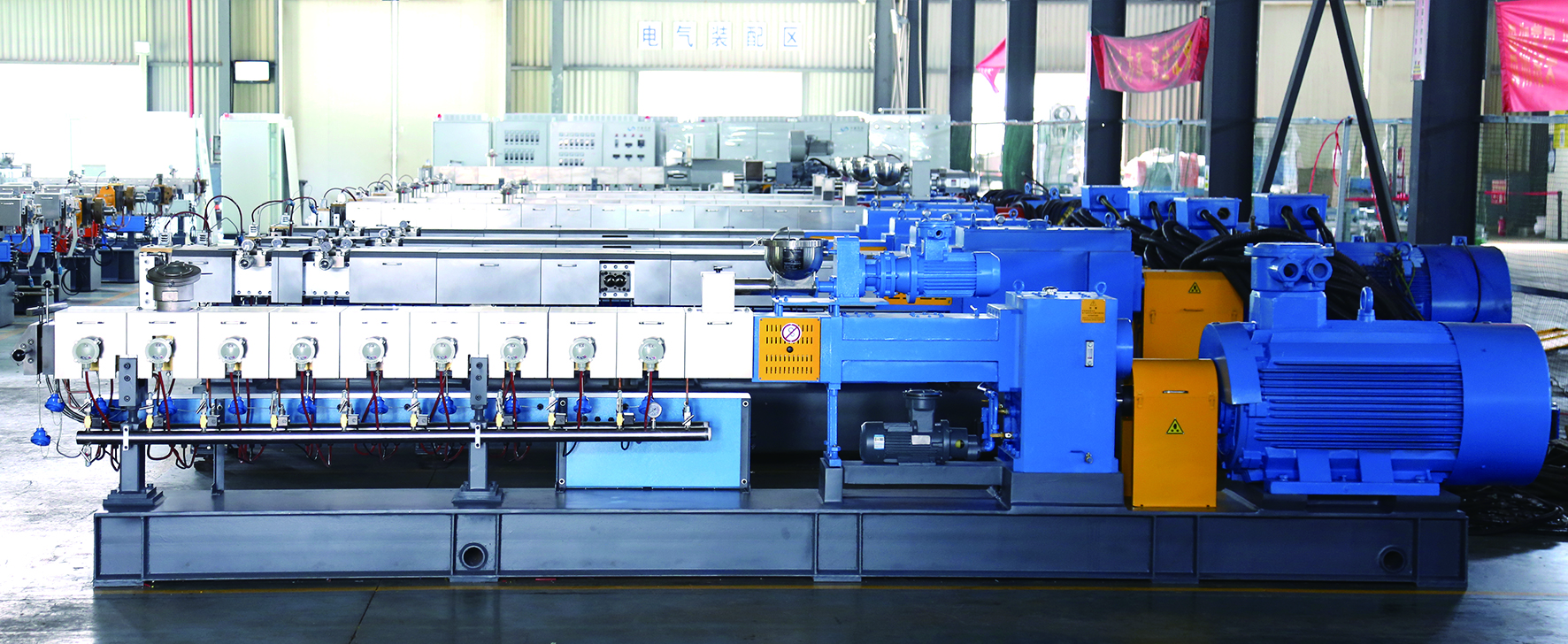

●Twin-Screw Extruders (Co-rotating Intermeshing): These machines are the gold standard for compounding and processing challenging materials. They offer superior:
○Mixing Capability: The intermeshing screws provide intense distributive and dispersive mixing, essential for creating homogeneous TPE compounds from base polymers and additives.
○Feed Flexibility: They can efficiently handle powders, liquids, and pellet feeds simultaneously.
○Self-Cleaning Action: The screw design minimizes material hang-up, reducing purge times and material degradation.
○Precise Temperature Control: Multiple barrel zones and the modular screw design allow for precise thermal management.
●Evidence: A study published in the Journal of Applied Polymer Science demonstrated that twin-screw extruders achieve a significantly more uniform dispersion of fillers within a TPE matrix compared to single-screw systems, leading to enhanced mechanical properties in the final product.
For companies focused on producing TPE compounds (e.g., creating custom TPE grades), a twin-screw extruder is indispensable. For companies using pre-compounded TPEs to make products, a well-designed single-screw extruder is often sufficient.
B. Critical Components of a TPE Extrusion Line
Beyond the extruder itself, a complete line includes several downstream components:
5.Feed System: Options include standard hoppers for free-flowing pellets or crammer feeders for low-bulk-density materials to ensure a consistent feed rate.
6.Screw and Barrel Design: The screw is the heart of the extruder. For TPEs, screws with special mixing sections (e.g., Maddock, Pineapple) are often used to ensure uniform melt temperature and composition. Barrel materials are typically nitrided or bimetallic for wear resistance.
7.Temperature Control Units (TCUs): Precise heating and cooling are critical. Closed-loop water or oil TCUs maintain the exact barrel and die temperatures required for specific TPE grades.
8.Venting: A vacuum vent port on the barrel is crucial for removing moisture and volatiles, preventing porosity and ensuring a high-quality surface finish.
9.Die: The die gives the plastic melt its final shape. Die design is a specialized science, accounting for TPE's melt strength and viscoelastic properties (die swell).
10.Downstream Equipment: This includes a cooling tank (for profiles/tubing), pullers to maintain tension, and cutters or winders to package the final product.
Investing in the right TPE extruder and optimizing its operation yields significant commercial benefits.
1. Enhanced Product Quality and Consistency:A modern TPE extruder with precise controls produces extrudates with tight dimensional tolerances, excellent surface quality, and consistent mechanical properties. This reduces rejection rates and enhances customer satisfaction.
2. Increased Production Efficiency and Throughput:Advanced screw designs and efficient temperature control allow for higher screw speeds without compromising quality. This directly translates to higher output and better return on investment.
3. Material Savings and Sustainability:Efficient extrusion minimizes material waste through stable processing and reduced startups/purging. Furthermore, a TPE extruder is perfectly suited for using recycled TPE content. The ability to reprocess TPE scrap directly on-site contributes to a circular economy model, a key selling point for environmentally conscious brands. The European Chemicals Agency (ECHA) highlights the substitution of hazardous substances and the use of recyclable materials as core goals of its sustainable chemical strategy, a trend TPEs are well-positioned to support.
4. Flexibility and Innovation:A versatile extrusion line allows manufacturers to quickly switch between different TPE grades and product geometries. This agility is crucial for custom product development and responding to market demands, enabling the production of innovative multi-material products (e.g., co-extrusion of rigid and soft TPEs).
Choosing the right equipment is a strategic decision. Here are the critical factors to evaluate:
●Material Portfolio: What TPE grades will you process (TPE-S, TPV, TPU)? Each has specific processing needs.
●Application: Are you compounding new materials or extruding finished profiles? This determines the need for a twin-screw or single-screw system.
●Output Requirements: Define your target throughput (kg/hour) to size the extruder correctly.
●Level of Automation: Consider Programmable Logic Controller (PLC) systems with recipe storage for repeatability and reduced operator error.
●Supplier Reputation and Support: Choose a manufacturer with proven expertise in polymer extrusion, particularly with TPEs, and who offers robust after-sales service, technical support, and spare parts availability.
The future of TPE extruder technology is aligned with Industry 4.0 principles. Smart extruders equipped with IoT sensors can monitor key parameters like melt pressure, temperature, and motor load in real-time. This data, analyzed by AI algorithms, can predict maintenance needs, optimize energy consumption, and automatically adjust settings to correct for variations in raw materials, ensuring unparalleled consistency and efficiency.
Furthermore, as regulatory pressure and consumer demand for sustainable products grow, the role of the TPE extruder in enabling circular manufacturing will only become more critical.
The TPE extruder is far more than a piece of industrial machinery. It is the enabling technology that unlocks the full potential of thermoplastic elastomers. For manufacturers, a deep understanding of extrusion principles and a strategic investment in the right equipment is a direct investment in product quality, operational efficiency, and long-term market competitiveness. By partnering with a knowledgeable equipment supplier and optimizing the extrusion process, businesses can position themselves at the forefront of the innovative and expanding world of TPE applications.
Q1: Can I process TPEs on a standard plastic extruder?A: Often, yes, particularly if you are using pre-compounded TPE pellets for simple shapes. However, to achieve the highest quality, efficiency, and to process more advanced TPE grades, modifications are often necessary. These may include a specialized screw design, a crammer feeder for difficult-to-feed materials, and a vacuum venting system for moisture removal.
Q2: What is the typical L/D ratio needed for a TPE extruder?A: The Length-to-Diameter (L/D) ratio is crucial. For simple extrusion of pre-compounded TPEs, an L/D of 24:1 to 30:1 is often adequate. For compounding or for TPEs requiring extensive devolatilization (drying), a longer barrel with an L/D of 32:1 to 40:1 or higher is recommended to provide sufficient residence time for melting, mixing, and venting.
Q3: How important is temperature control in TPE extrusion?A: Extremely important. TPEs are sensitive to thermal history. Inaccurate or fluctuating temperatures can cause material degradation (leading to discoloration and weak spots) or insufficient melting (causing poor surface finish). Precise, closed-loop temperature control on each barrel zone and the die is essential for consistent results.
Q4: What are the common problems faced when extruding TPEs?A: Common issues include:
●Surging: Uneven output caused by poor feeding or incorrect screw design.
●Degradation: Black specks or burnt odor due to excessive temperatures or shear.
●Poor Surface Finish: Caused by moisture (requiring better venting), low melt temperature, or a worn screw/barrel.
●Die Swell Inconsistency: Variations in the amount the melt expands after exiting the die, often due to temperature or pressure fluctuations.
Q5: How does TPE extrusion compare to thermoset rubber processing in terms of cost?A: TPE extrusion generally has a lower total cost of operation for several reasons:
●Faster Cycles: TPEs do not require a vulcanization step, which is time-consuming.
●Recyclability: Sprues and scrap can be directly reground and reprocessed, minimizing waste.
●Energy Efficiency: The process is generally more energy-efficient as it avoids the high energy demands of vulcanization ovens.
Q6: Can I use recycled TPE content in my extruder?A: Absolutely, and it is a major advantage. A TPE extruder is ideal for incorporating recycled TPE regrind. It is typically recommended to use a consistent ratio of virgin to recycled material and ensure the regrind is clean and free of contaminants to maintain product quality. A twin-screw extruder is particularly effective at homogenizing the virgin and recycled blend.
