In the highly competitive world of plastics manufacturing, achieving consistent, vibrant, and cost-effective coloration is not just an advantage—it’s a necessity. At the heart of this critical process lies a piece of equipment that often determines the success of the entire operation: the Color Masterbatch Extruder . For businesses seeking to enhance their product quality, streamline production, and reduce their environmental footprint, investing in the right extruder technology is a pivotal decision.
This comprehensive guide delves into the intricate world of color masterbatch extrusion. We will explore how modern Color Masterbatch Extruders work, their key technological advancements, and the tangible benefits they deliver. Beyond mere theory, we will present evidence-based insights into how this machinery drives operational excellence and contributes to a more sustainable manufacturing model.
Before appreciating the technology, it’s essential to understand the product it creates. Masterbatch is a concentrated mixture of pigments and/or additives encapsulated within a carrier polymer. This “pre-colored” plastic pellet is then used in precise ratios to color raw polymer materials during the final product manufacturing stage (e.g., injection molding, blow molding, film blowing).

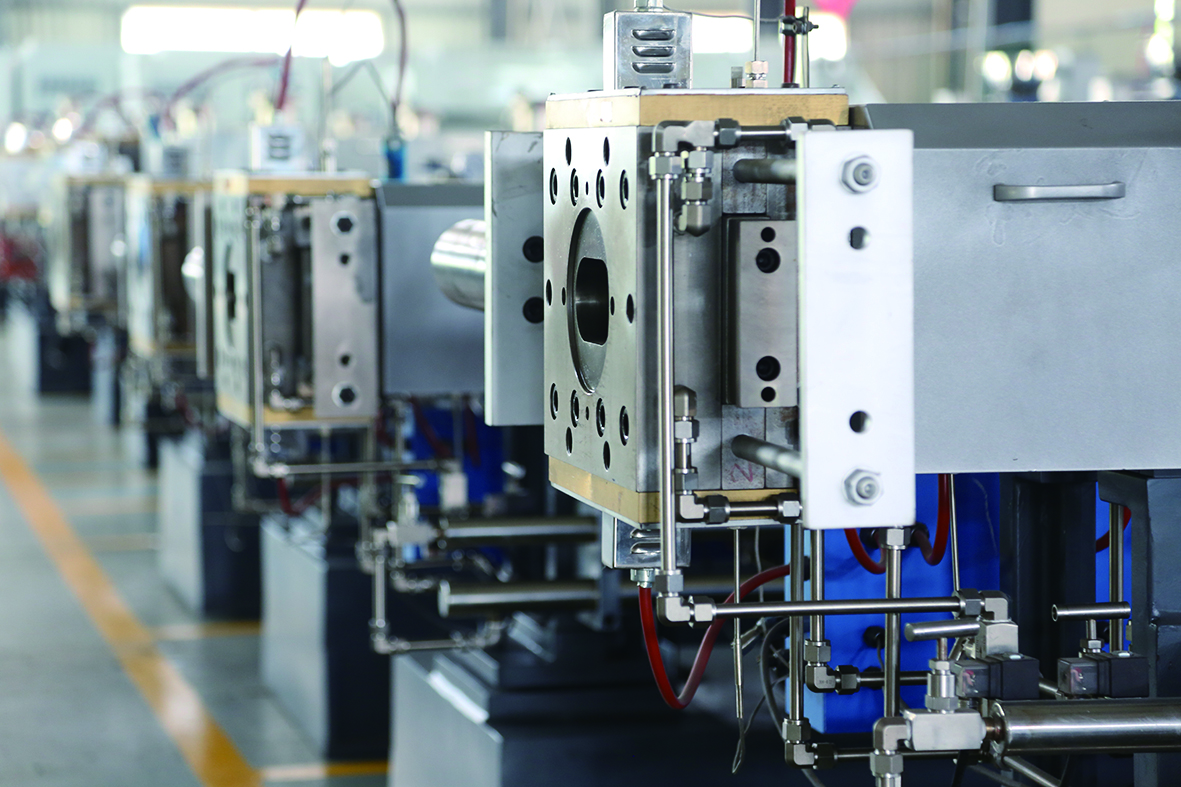

A Color Masterbatch Extruder is the industrial machine responsible for producing this masterbatch. Its primary function is to perform several critical tasks simultaneously:
1.Melting: Plastifying the carrier resin (such as LDPE, PP, or PS).
2.Dispersing: Uniformly distributing pigment particles (often challenging to handle powders) throughout the molten polymer matrix without agglomerates.
3.Distributing: Achieving a homogeneous mixture where the color concentration is consistent across the entire batch.
4.Pelletizing: Forming the final, uniform-sized masterbatch pellets for easy handling and dosing.
The efficiency and sophistication of the extruder directly dictate the quality of the dispersion, which in turn impacts the final plastic product’s color consistency, mechanical properties, and surface finish.
The journey from simple single-screw extruders to today’s advanced twin-screw systems marks a significant leap in capability. The choice of extruder type is fundamental to meeting specific masterbatch production demands.
Single-screw extruders operate on a relatively straightforward principle: a single rotating screw inside a barrel conveys, melts, and pumps the polymer mixture. While cost-effective for less demanding applications, they have inherent limitations for high-quality color masterbatch production.
Limitation: They primarily rely on shear stress for mixing, which can be insufficient for breaking down tough pigment agglomerates. This can lead to specks, streaks, and inconsistent coloration in the final product.
Evidence: Studies have shown that the distributive mixing efficiency of a single-screw extruder is significantly lower than that of twin-screw models. This is quantified by metrics like the “Coefficient of Variation” (CoV) in color concentration, where twin-screw systems consistently achieve a CoV of less than 5%, compared to often over 10% for single-screw machines in demanding applications.
Co-rotating intermeshing twin-screw extruders are the undisputed champions of modern Color Masterbatch Extruder technology. They feature two screws that rotate in the same direction and mesh with each other within the barrel. This design offers unparalleled control over the process.
Superior Mixing: The intermeshing screws create a continuous kneading and rolling action, providing both dispersive and distributive mixing. Dispersive mixing breaks down pigment agglomerates, while distributive mixing ensures even spatial distribution.
Modular Flexibility: A key advantage is their modular barrel and screw design. Process engineers can configure the screw elements (kneading blocks, forward/conveying elements, reverse elements) to create specific shear and mixing profiles tailored to exact pigment types and carrier resins.
Enhanced Process Control: Twin-screw extruders offer superior heat and pressure management, allowing for precise temperature profiles that prevent thermal degradation of sensitive pigments.
Fact: According to market analysis by Grand View Research, the global twin-screw extruder market size was valued at USD 1.02 billion in 2021 and is expected to expand at a compound annual growth rate (CAGR) of 4.8% from 2022 to 2030. This growth is largely driven by the rising demand for high-performance plastics and compounded materials, including specialized masterbatches.
Upgrading to a modern, high-efficiency extruder translates into direct, measurable business outcomes.
A high-precision Color Masterbatch Extruder eliminates batch-to-batch variation. This consistency is critical for brand owners who require specific color matches (e.g., automotive parts, consumer electronics packaging).
Consistent masterbatch reduces rejects and waste in downstream manufacturing, saving significant costs.
Evidence: A case study from a leading European compounder showed that after switching to a new- generation twin-screw extruder for a demanding white masterbatch, they reduced their color deviation (Delta-E) from an average of 1.5 to below 0.5, well within the strict tolerances of their major clients.
Modern extruders are designed for output. Advanced screw designs, optimized torque capabilities, and efficient heating/cooling systems allow for higher screw speeds and greater throughput without compromising quality. Furthermore, features like side-stuffers allow for the addition of fillers or less thermally stable additives downstream, increasing formulation flexibility and overall line efficiency.
Efficiency isn’t just about speed; it’s about resource utilization.
Energy Savings: Newer extruder models incorporate energy-efficient motors, advanced insulation, and optimized processing parameters that reduce kWh per kilogram of output.
Material Savings: Superior dispersion means a higher concentration of pigment can be effectively used, potentially allowing for a let-down ratio, meaning less masterbatch is needed to achieve the same color strength. This optimizes raw material usage.
Reduced Downtime: Robust construction, wear-resistant materials (like nitrided barrels and bi-metallic screws), and easy-to-clean designs minimize maintenance downtime.
The role of the Color Masterbatch Extruder in sustainability is twofold:
Compatibility with Recyclates: As manufacturers incorporate post-consumer recycled (PCR) or post-industrial recycled (PIR) materials, the challenge of achieving consistent coloration increases. Modern extruders, with their superior mixing prowess, are essential for homogenizing the often-variable recycled stream with virgin material and masterbatch, ensuring a consistent final product.
Supporting Biodegradable Plastics: The development of masterbatches for PLA and other biopolymers requires gentle yet thorough processing to avoid degrading the sensitive polymer. Precise temperature control and shear management in advanced extruders make this possible.
Selecting an extruder is not a one-size-fits-all process. Key considerations include:
Application Requirements: Are you producing standard colors or highly concentrated, technical masterbatches with difficult-to-disperse pigments?
Required Output Volume: What is your target annual production capacity?
Flexibility: Do you need a machine that can handle a wide variety of recipes, or is it dedicated to a specific product line?
After-Sales Support: The availability of technical service, spare parts, and process expertise from the supplier is crucial for long-term operational success.
The Color Masterbatch Extruder is far more than a simple melting and mixing machine. It is a sophisticated precision instrument that sits at the core of value-added plastics manufacturing. By ensuring exceptional color quality, driving down operational costs, and supporting sustainable production practices, a modern extruder is not an expense but a strategic investment. In an era where quality and efficiency are paramount, partnering with a technology leader who provides cutting-edge extrusion solutions is the definitive step toward securing a competitive edge and achieving long-term growth.
The main difference lies in mixing efficiency and process control. Single-screw extruders are simpler and cheaper but offer limited mixing ability, making them suitable for less demanding applications. Twin-screw extruders provide intensive dispersive and distributive mixing through their intermeshing screws, resulting in superior pigment dispersion, consistency, and flexibility for complex recipes. They are the industry standard for high- quality masterbatch.
Modern extruders contribute to sustainability in several ways:
Energy Efficiency: They use high-efficiency motors and optimized thermal systems to lower energy consumption per unit of output.
Material Efficiency: Excellent dispersion allows for optimal pigment use, reducing waste.
Waste Reduction: Consistent masterbatch quality leads to fewer rejects in downstream manufacturing. Recyclate Processing: They enable the effective incorporation of recycled materials by ensuring homogeneous coloring of variable feedstock.
Regular maintenance is key to longevity. It typically includes:
Daily: Visual inspections, checking for leaks or unusual noises.
Weekly/Monthly: Cleaning of feed hoppers, checking heater bands and thermocouples.
Scheduled (e.g., annually or based on runtime): Screw and barrel inspection for wear, replacement of wear parts like screw elements and barrel liners, and gearbox oil analysis. Preventive maintenance schedules provided by the manufacturer should be strictly followed.
Yes, the modular design of co-rotating twin-screw extruders is a significant advantage here. By reconfiguring the screw profile and adjusting processing parameters (temperature, screw speed, feed rates), a single machine can be adapted to produce a wide range of masterbatches. However, thorough cleaning between product changeovers is critical to prevent cross-contamination.
L/D Ratio: This is the Length-to-Diameter ratio of the screw. A higher L/D ratio (e.g., 40:1 to 48:1) provides a longer residence time in the barrel, allowing for more processing sections and better mixing, which is essential for high-quality masterbatch.
Torque: This is the turning force of the screws. High torque per volume is crucial because it indicates the machine’s ability to process high-viscosity materials and tough pigment concentrates without stalling, enabling higher productivity and better dispersion.
In many cases, yes. Retrofitting options can include upgrading the screw and barrel elements to more wear- resistant materials, installing new gravimetric feeders for better accuracy, or integrating modern control systems with data logging capabilities. It is best to consult with the original equipment manufacturer or a specialized service provider to assess the feasibility and cost-effectiveness of an upgrade for your specific machine.
