In the highly competitive world of industrial manufacturing, efficiency, output quality, and versatility are not just advantages—they are necessities. Companies across sectors such as plastics, food processing, and chemical manufacturing continuously seek technologies that can enhance their production capabilities while managing costs. Among the most impactful innovations meeting these demands is the two-stage extruder. This sophisticated machinery represents a significant evolution from traditional single-stage extrusion systems, offering a refined approach to material processing. This article delves into the intricacies of the two-stage extruder, exploring its fundamental principles, operational advantages, diverse applications, and the compelling business case for its adoption.

Understanding the Core Concept: What is a Two-Stage Extruder?

At its essence, a two-stage extruder is a processing system that physically separates the primary functions of an extruder—plasticating and melting, followed by mixing, degassing, and pumping—into two distinct, sequentially operating stages. Unlike a single-screw extruder where all these processes occur in one long barrel, or a twin-screw extruder where they happen in closely intermeshing sections, the two-stage extruder dedicates specific machinery to each phase.

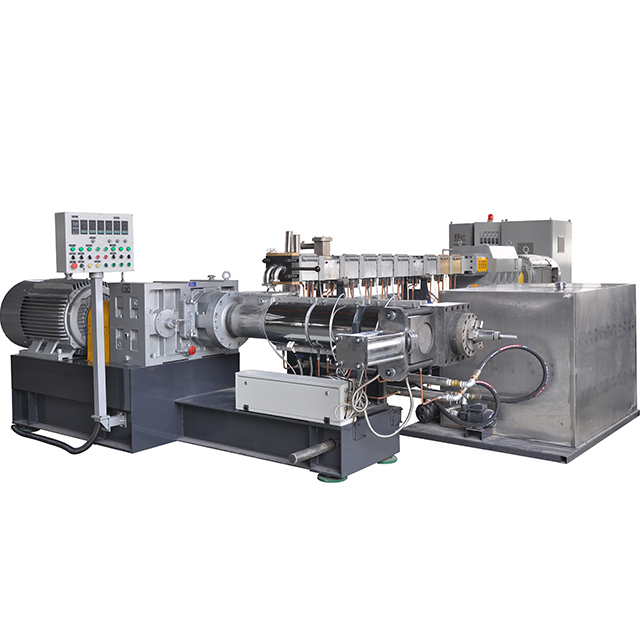

The first stage is typically a twin-screw extruder. This section is designed for high-intensity mixing, compounding, and melting. It efficiently incorporates raw materials, additives, fillers, and reinforcements, ensuring a homogeneous melt. The second stage is generally a single-screw extruder. Its primary role is to act as a pump, generating the high, stable pressure required to push the molten material through a die. Crucially, a venting zone is located between the two stages. This vent port allows for the removal of volatile components, moisture, and entrapped air—a process known as devolatilization.

This separation of duties is the cornerstone of the two-stage extruder's superior performance. By decoupling the mixing function from the pumping function, each stage can be optimized for its specific task without compromise.

The Operational Advantages: Why Choose a Two-Stage Extruder?

The architectural design of the two-stage extruder translates into a host of tangible benefits that directly impact production efficiency and product quality.

1. Exceptional Devolatilization and Drying Capabilities

This is arguably the most significant advantage. In a single-stage extruder, venting can be challenging because the screw must both mix and build pressure. If the pressure at the vent is too high, material can be forced out of the vent port, causing mess and product defects. The two-stage extruder elegantly solves this. The first twin-screw stage completes the melting and mixing. The melt is then starve-fed into the second single-screw stage, creating a low-pressure zone at the vent. This vacuum can be applied very effectively, removing volatiles to very low levels, often eliminating the need for costly pre-drying of materials.

2. Enhanced Product Quality and Consistency

The independent control over mixing and pressure generation leads to a more uniform product. The twin-screw section ensures impeccable dispersion of ingredients, while the single-screw pump provides a laminar, pulse-free flow through the die. This results in extrudates with superior surface finish, precise dimensional tolerances, and consistent mechanical properties batch after batch.

3. Unmatched Flexibility and Process Stability

A two-stage extruder can handle a wider range of materials and recipes than its single-stage counterpart. It can process formulations with very high filler loads (exceeding 80% in some cases), heat-sensitive materials, and recipes that generate a large amount of volatiles. The process is inherently more stable because fluctuations in the mixing stage are dampened by the second pumping stage, preventing surging and ensuring a steady output.

4. Increased Throughput and Energy Efficiency

While the initial setup is more complex, a well-configured two-stage extruder often achieves higher specific throughput rates (output per unit of energy). The twin-screw section is highly efficient at conveying and melting, while the single-screw section is optimally designed for pressure build-up with minimal energy loss. This can lead to significant reductions in energy consumption per kilogram of product.

Key Applications Across Industries

The unique capabilities of the two-stage extruder make it the equipment of choice for several demanding applications.

Plastics Compounding: Ideal for producing high-performance engineering plastics, wood-plastic composites (WPC), masterbatches, and highly filled compounds where thorough dispersion and devolatilization are critical.

Food Processing: Used for the production of pet foods, cereals, and texturized vegetable proteins (TVP), where precise cooking, mixing, and moisture control are essential.

Chemical Processing: Employed in reactive extrusion, polymer devolatilization, and the continuous production of adhesives and sealants.

The Business Case: Investing in a Two-Stage Extruder

For a business leader, the decision to invest in capital equipment hinges on return on investment (ROI). A two-stage extruder, while representing a higher initial investment than a single-stage system, offers a compelling ROI through several channels. It reduces operational costs by minimizing material waste, lowering energy consumption, and often eliminating pre-drying steps. It enhances product quality, allowing a company to command premium prices and enter higher-value markets. Furthermore, its flexibility future-proofs the production line, enabling quick adaptation to new product formulations and material trends without requiring a complete equipment overhaul. In essence, the two-stage extruder is not merely a piece of machinery; it is a strategic asset that drives long-term growth and competitiveness.

Conclusion

The two-stage extruder stands as a testament to the power of intelligent engineering in overcoming the limitations of traditional manufacturing systems. By strategically separating the processes of mixing and pumping, it delivers unparalleled levels of efficiency, quality, and versatility. For any enterprise serious about optimizing its extrusion processes, enhancing its product portfolio, and strengthening its market position, understanding and adopting two-stage extrusion technology is a pivotal step. It is the definitive solution for tackling complex compounding challenges and achieving a new echelon of production performance.

Frequently Asked Questions (FAQ) About Two-Stage Extruders

Q1: How does a two-stage extruder differ from a twin-screw extruder?

This is a common point of confusion. A two-stage extruder often incorporates a twin-screw extruder as its first stage. The key difference is the addition of a venting zone and a second, single-screw pumping stage. A standard twin-screw extruder performs mixing, melting, and pressure generation in one continuous barrel, while a two-stage system dedicates separate machines to these tasks.

Q2: Is a two-stage extruder always better than a single-stage system?

Not always. For simple applications involving straightforward polymers with low moisture or volatile content, a single-screw or twin-screw extruder may be more cost-effective and simpler to operate. The two-stage extruder shines in complex applications requiring intensive mixing, high filler levels, or extensive devolatilization.

Q3: What are the main maintenance considerations for a two-stage extruder?

Maintenance is more involved due to the presence of two drives, two barrels, and the intermediate vent section. Proper maintenance requires a scheduled regimen for inspecting and wearing components like screws and barrels in both stages. However, the robust design and the separation of functions can sometimes lead to less severe wear in the pumping stage compared to a single machine trying to do everything.

Q4: Can a two-stage extruder handle recycled materials?

Yes, it is exceptionally well-suited for recycling applications. Recycled plastics often contain moisture, contaminants, and volatiles from their previous life. The superior mixing and devolatilization capabilities of a two-stage extruder are ideal for purifying and homogenizing recycled streams, producing a higher quality regrind suitable for more demanding applications.

Q5: How significant are the energy savings with a two-stage extruder?

The energy savings can be substantial but are highly dependent on the application. The savings primarily come from the elimination of pre-drying, the high efficiency of the twin-screw melting section, and the optimized pumping of the single-screw stage. A full energy audit comparing a two-stage system to a traditional setup with a pre-dryer often reveals a significant reduction in total energy consumption.

Q6: Is the process control more complex?

Yes, operating a two-stage extruder involves controlling more parameters, such as the speed and torque of two independent drives and the vacuum level at the vent. However, modern systems are equipped with sophisticated programmable logic controllers (PLCs) and human-machine interfaces (HMIs) that simplify operation, allow for recipe storage, and provide automated control for stable, repeatable production.
